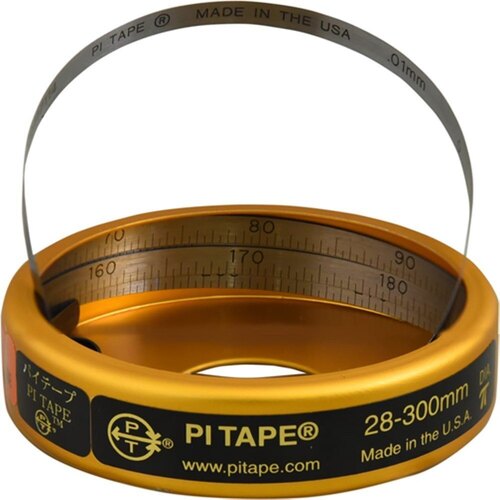

28-300 mm Pi Tape

About 28-300 mm Pi Tape

1095 Spring Steel Outside Diameter Tape

Pi Tape Texas, LLC's 1095 spring steel diameter measuring tapes are delivered with a Calibration Report traceable to the National Institute of Standards and Technology. Our Spring Steel tapes are suitable for use with all materials and in noncorrosive environments.

716 Stainless Steel Outside Diameter Tape

Pi Tape Texas, LLC's 716 Stainless Steel tapes are manufactured the same exacting standards as our Spring Steel tapes. They are delivered with a Calibration Report traceable to the National Institute of Standards and Technology.

Our 716 Stainless Steel tapes are suitable for use with all materials and in corrosive environments. Larger sizes available upon request. Blue Easy to Read Outside Diameter Tape Pi Tape brand Blue Easy to Read tapes are constructed of 1095 Spring Steel and are intended for use in low-light environments. They differ from our standard tapes by featuring a higher contrast facing of white lines and numerals on a dark blue background. They are delivered with a Calibration Report traceable to the National Institute of Standards and Technology. The Blue Easy to Read tapes are best used for measuring diameters in lowlight environments. They are not intended for use with chemicals or in corrosive environments.

Larger sizes available upon request.

• Part # Diameter Gage Thickness Body Width
• PM000 15mm - 50mm 6.35mm 0.18mm 12.7mm
• PM0 28mm - 200mm 6.35mm 0.18mm 12.7mm
• PM02 28mm - 300mm 6.35mm 0.18mm 12.7mm
• PM03 50mm - 300mm 6.35mm 0.25mm 12.7mm
• PM1 100mm - 300mm 6.35mm 0.25mm 12.7mm
• PM1SP 50mm - 600mm 6.35mm 0.25mm 12.7mm
• PM2 300mm - 600mm 6.35mm 0.25mm 12.7mm
• PM2SP 300mm - 900mm 6.35mm 0.25mm 12.7mm
• PM3 600mm - 900mm 6.35mm 0.25mm 12.7mm
• PM3SP 600mm - 1200mm 6.35mm 0.25mm 12.7mm
