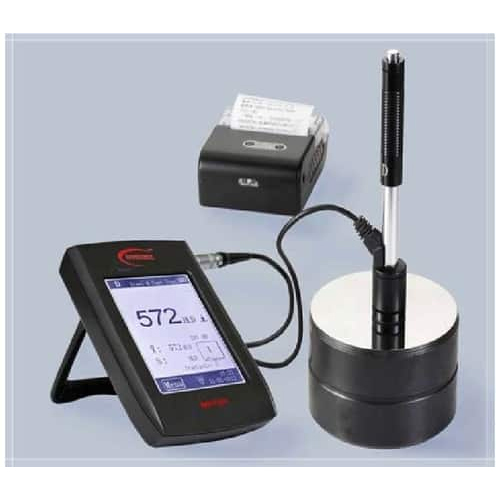

About Digital Portable Hardness Tester TH110A
Product Application: 1. Die cavity of molds 2.Bearings and other parts 3.Failure analysis of pressure vessel, steam generator and other equipment 4.Heavy work piece 5.The installed machinery and permanently assembled parts 6.Testing surface of a small hollow space 7.Material identification in the warehouse of metallic materials 8.Rapid testing in large range and multi-measuring areas for large-scale work piece. Our advantage 1. We have our own factory with competitive price 2. Quality is our culture 3. time is gold, we have professional team produce the product with short time. 4. With us your money in safe TH110A Leeb hardness tester Measuring range HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7) Impact Directions Up, down, horizontal, slanting up, slanting down Measuring Materials Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel Standards ASTM A956,DIN50156-1,GB/T17394-1998 Hardness Scales HL, HB, HRB, HRC, HRA, HV, HS. Tensile Strength 374 to 2652 N/m 2 Display 128*64 digital matrix LCD Memory 600 groups max.(relative to impact times 32~1) Work Voltage 9V/500mA. Main Features 1. Large screen (12864 dot matrix LCD), showing all functions and parameters. 2. Test at any angle, even upside down. 3. Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table. 4. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately. 5. Seven impact devices are available for special application. Automatically identify the type of impact devices. 6.Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc. 7.Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit. 8. Battery information indicates the rest capacity of the battery and the charge status. 9. User calibration function. 10. USB port with the PC humanity multi-functions data proceeding software. 11. Original imported high speed thermal printer support the immediate printing function. I
